Mobile Grooming Vans require efficient and effective air conditioning (A/C) systems to maintain a comfortable and low-humidity environment. This article explores the critical components of the A/C system and explains how the refrigerant flows through it to provide cooling.
Key Components of the A/C System

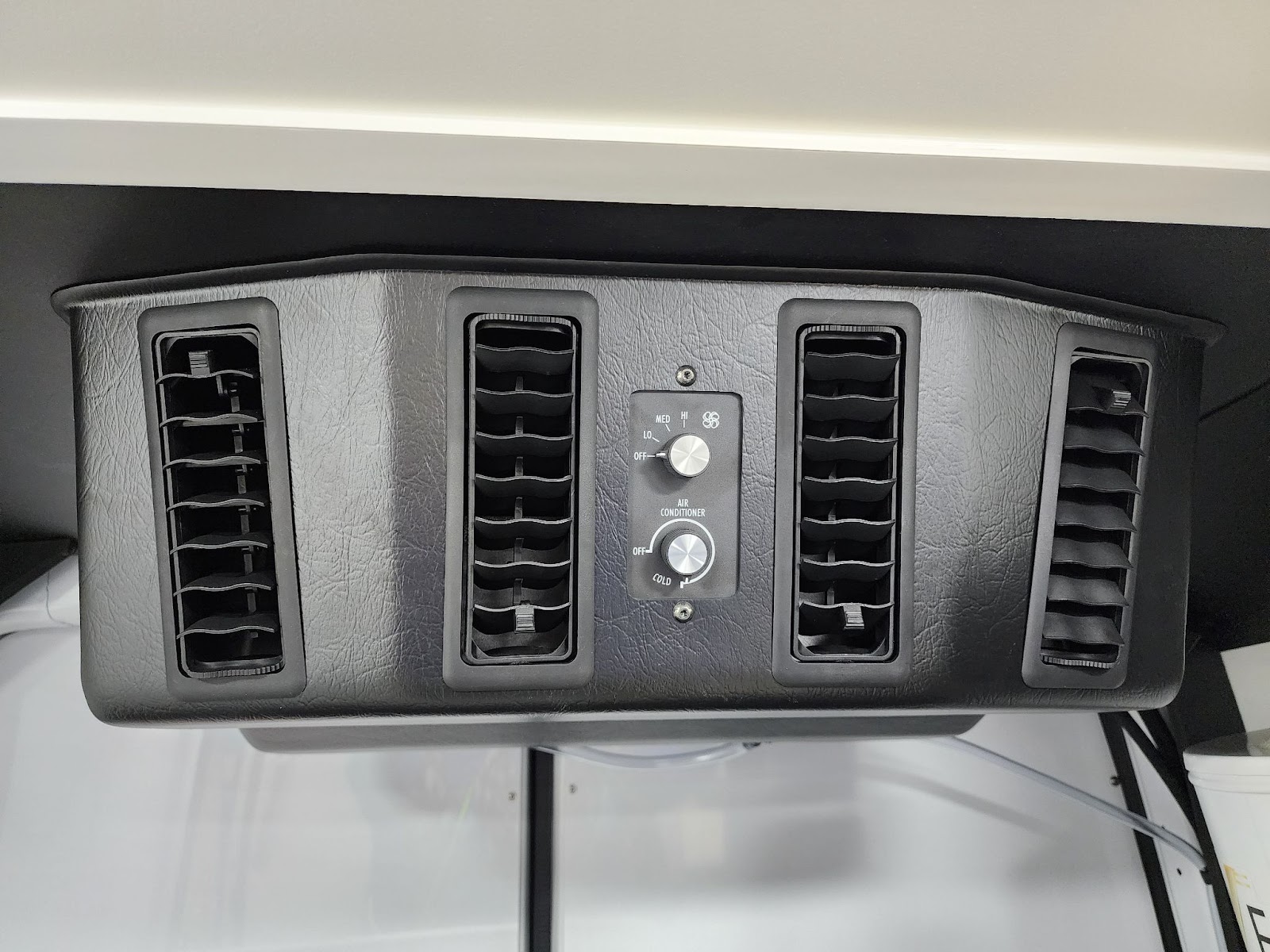

1. Evaporator
The evaporator is the most visible part of the A/C system, located inside the van's grooming salon. It consists of cold coils, a blower fan, and controls that circulate air over these coils. The refrigerant enters the evaporator as a liquid and evaporates. This process cools the evaporator coils, which in turn cool and dehumidify the air that is blown into the salon, ensuring a comfortable environment.

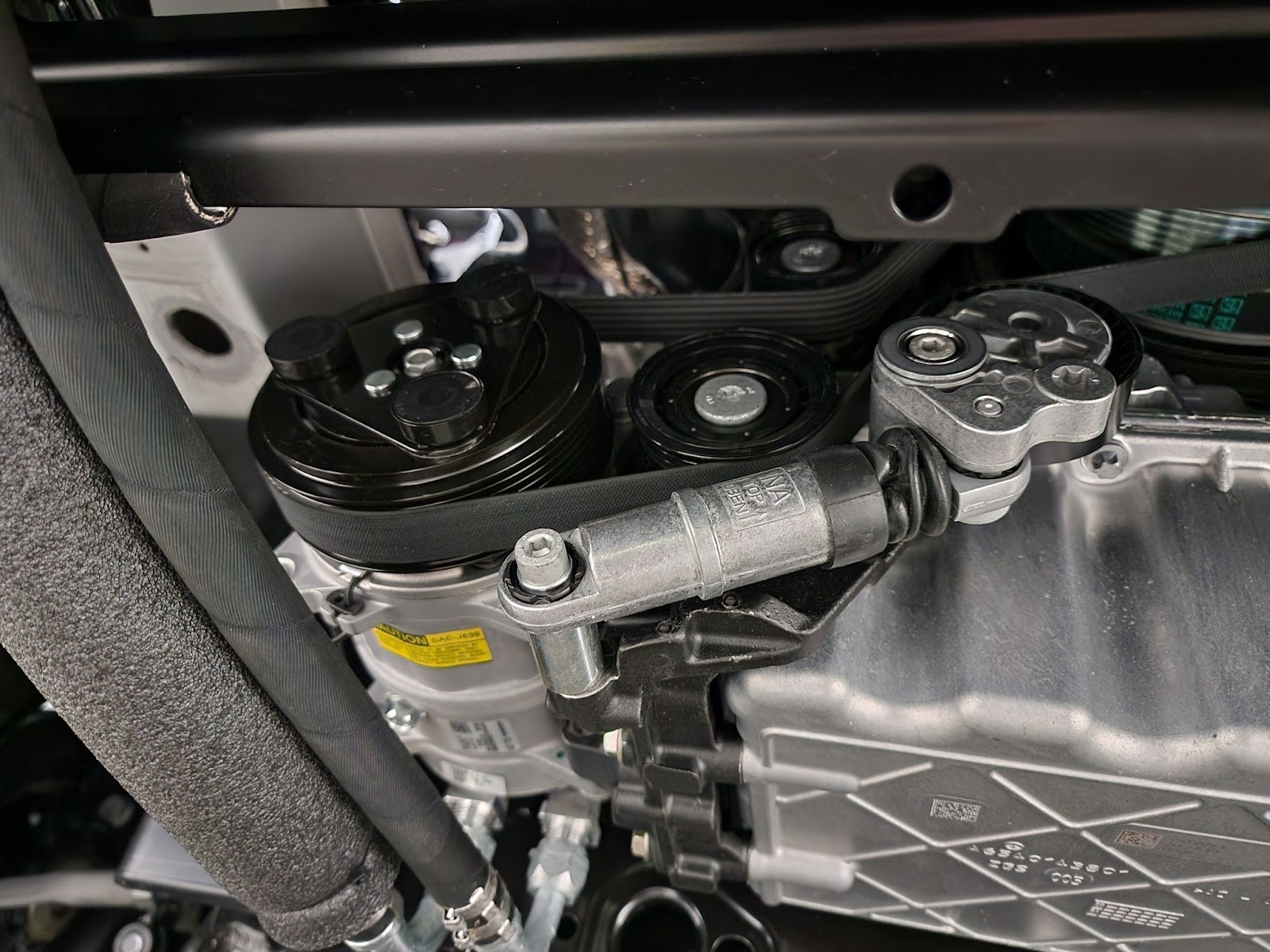

2. Engine Driven Compressor
The compressor is responsible for pressurizing the refrigerant and pushing it through the system. When the warmed refrigerant gas from the evaporator reaches the compressor, it gets compressed into a hot gas, increasing the pressure and temperature of the refrigerant. Depending on the system, the compressor can be mechanically driven by the van's engine or electronically driven by a motor.

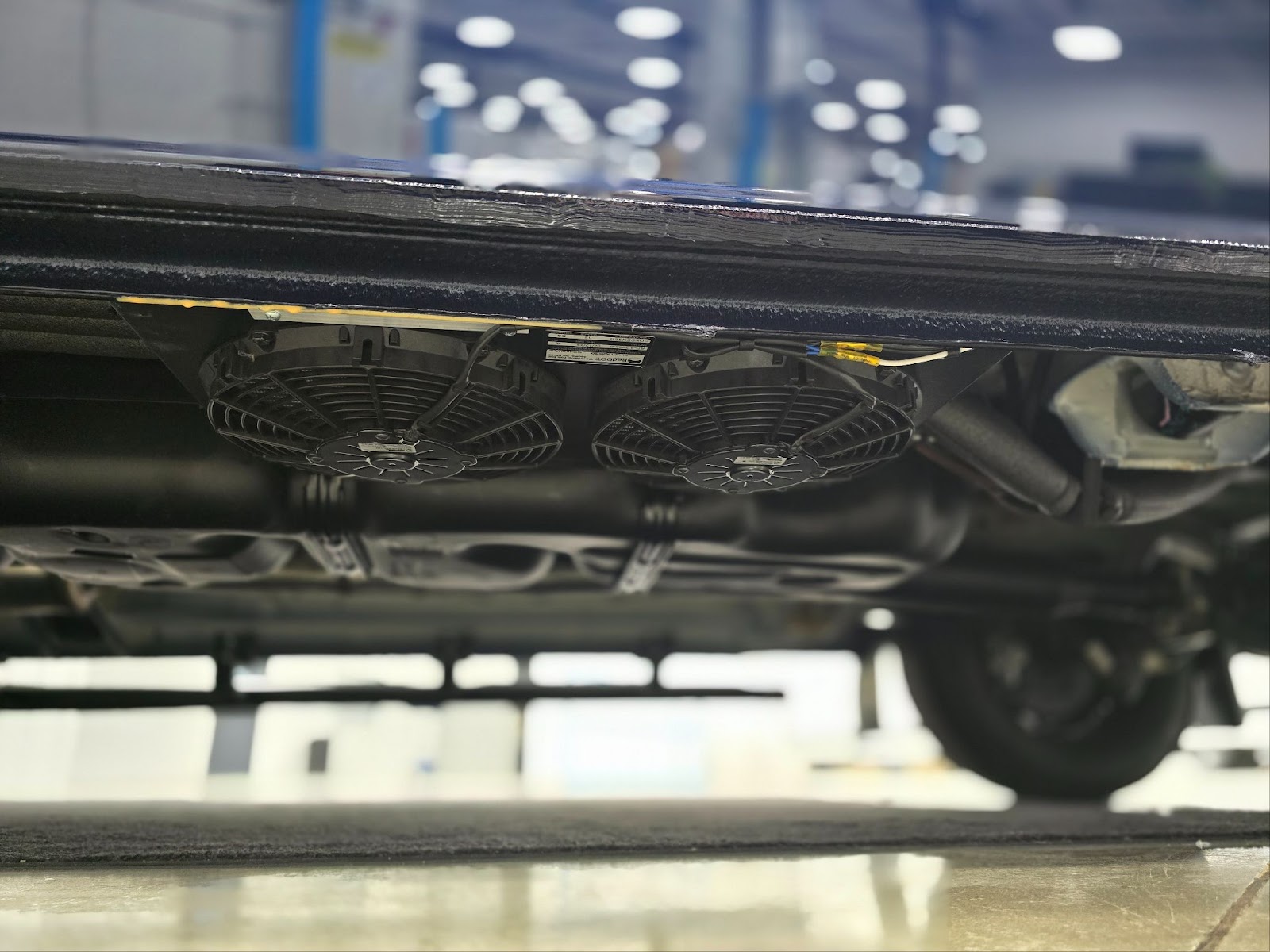

3. Condenser
The condenser, located on the driver's side underneath the van, receives the hot gas from the compressor. This hot gas condenses back into a liquid in the condenser, releasing its heat to the outside air. The van's directional filter, coils, and fan help dissipate this heat toward the ground. All heat dissipated to the air is heat being removed from the salon.

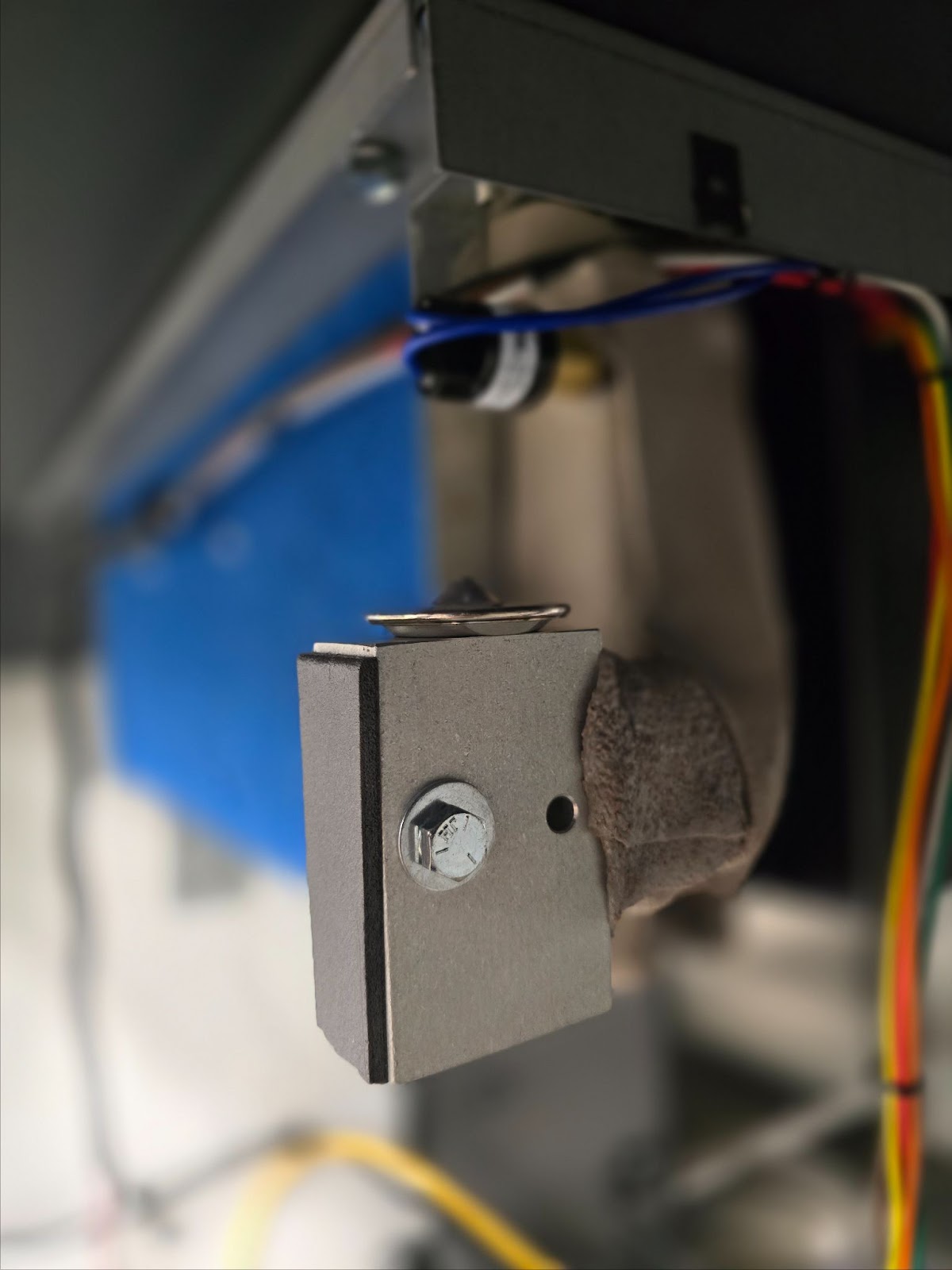

4. Expansion Valve
The expansion valve, found at the back of the evaporator, regulates the refrigerant's flow from a high-pressure liquid to a low-pressure gas. This regulation is essential for maintaining the refrigerant's correct pressures and flow for effective cooling.

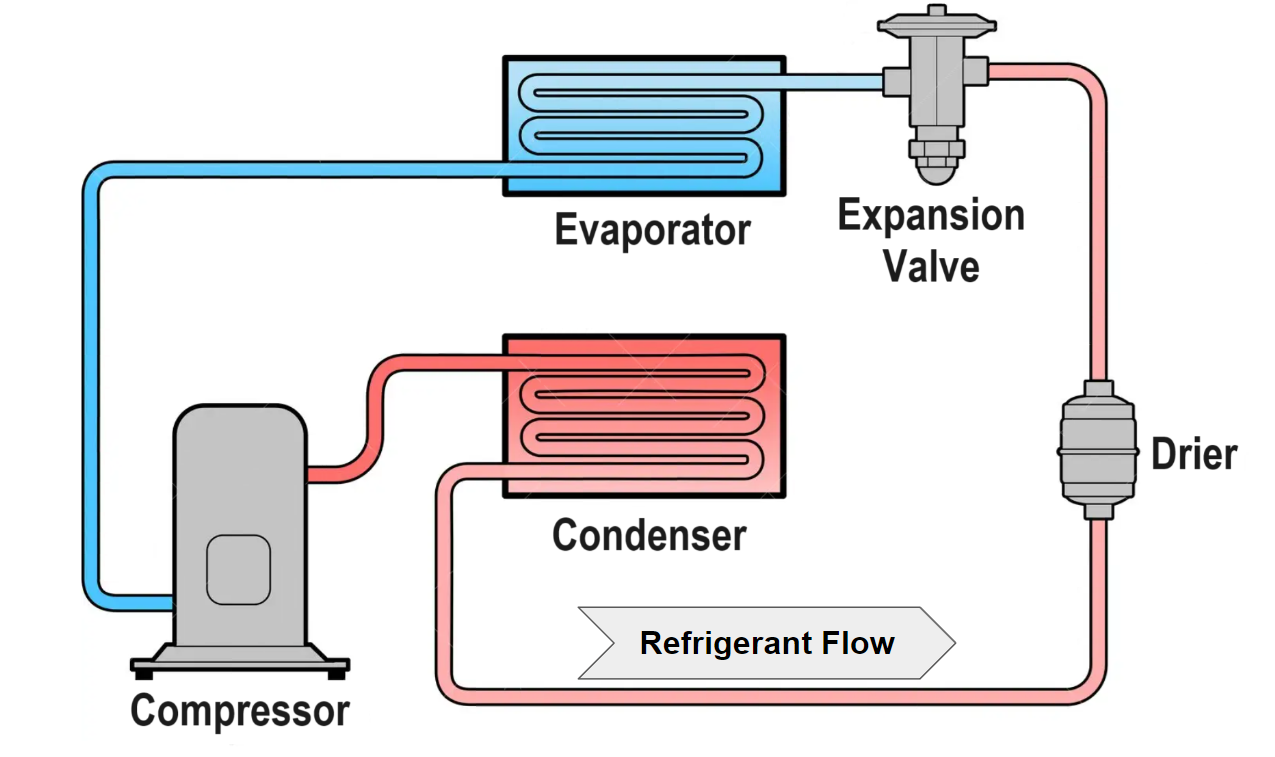

Journey of the Refrigerant Through the A/C System
The refrigerant's journey through the A/C system is a continuous cycle of phase changes and heat exchanges:
- Expansion: The liquid refrigerant passes through the expansion valve, where its pressure drops, allowing it to evaporate.
- Evaporation: The refrigerant enters the evaporator as a cold gas, absorbing heat from the air and cooling the evaporator coils.
- Compression: The now warm refrigerant gas moves to the compressor, where it is pressurized into a hot gas.
- Condensation: The hot gas flows into the condenser, releasing heat and condensing back into a liquid. The efficiency of this heat release depends significantly on the cleanliness and condition of the condenser coils. Clogged coils can severely impair the system's ability to cool the refrigerant effectively.
- The cycle repeats.
Common Issues and Troubleshooting
Understanding the refrigerant flow is crucial for diagnosing common A/C system problems in a mobile dog grooming van. Here are some symptoms and potential causes:
- Reduced Cooling Efficiency: If the A/C starts cold but warms up after a short period, it could indicate that the condenser coils are clogged with dirt, mud, grass, hair, or leaves. This obstruction prevents effective heat dissipation, limiting the refrigerant's cooling capacity.
- Condensation on Evaporator Shroud: If the evaporator coils are clogged with dander and hair, they cannot effectively cool the air. This restriction causes the coils to remain cold but fails to cool the air efficiently, leading to condensation on the plastic shroud.
- Parking Conditions: In extreme temperatures, parking on hot asphalt or in direct sunlight can radiate additional heat onto the condenser, reducing its efficiency. Parking in the shade, on concrete, or on grass can mitigate the heat load and improve the A/C system's performance.
Conclusion
The A/C system in the Hanvey Mobile Grooming Van relies on the efficient operation of its components and unobstructed airflow. Regular maintenance, such as cleaning the condenser and evaporator coils, is essential for optimal performance. Understanding how these components work together and recognizing some common issues and symptoms can help diagnose problems early and ensure a comfortable grooming environment. When in doubt about the A/C’s performance, always reach out to suppot@gohanvey.com for proper troubleshooting.
